Polymer Modified Bitumen (PMB) PG 82-22
High Performance Bitumen for Heavy Traffic & Extreme Climate Conditions
Product Overview
Polymer Modified Bitumen (PMB) PG 82-22 is a high-performance asphalt binder engineered to withstand extreme temperature variations and heavy traffic loads. This grade is specifically designed for modern infrastructure projects where durability, flexibility, and long service life are critical.
The designation PG 82-22 indicates that the binder can perform efficiently at pavement temperatures up to +82°C and remain flexible at temperatures as low as -22°C.
This product is widely used in East Asia (Taiwan) and international markets for high-quality road construction projects.
Key Features
- Excellent resistance to rutting under high temperatures
- Superior flexibility at low temperatures to prevent cracking
- Enhanced elasticity due to polymer modification (SBS)
- Strong adhesion to aggregates
- Long-term durability in harsh environmental conditions
Applications
Polymer Modified Bitumen PG 82-22 is suitable for:
- Highways and expressways
- Airport runways and taxiways
- Industrial and heavy-duty roads
- Bridges and elevated structures
- Urban roads in high-temperature regions
Technical Specifications (PG 82-22)
| Characteristics | Unit | Limits | Test Method |
|---|---|---|---|
| Max Pavement Temperature | °C | ≤ 82 | — |
| Min Pavement Temperature | °C | ≥ -22 | — |
| Flash Point | °C | Min 230 | AASHTO T48 |
| Viscosity @135°C | Pa.s | Max 3.0 | AASHTO T316 |
| Dynamic Shear (G*/sinδ) @76°C | kPa | Min 1.0 | AASHTO T315 |
| Elastic Recovery | % | Min 30 | AASHTO T301 |
| Mass Change | % | Max 1.0 | AASHTO T240 |
| Dynamic Shear (After Aging) | kPa | Min 2.2 | AASHTO T315 |
| PAV Temperature | °C | 110 | AASHTO R28 |
| G*sinδ @34°C | kPa | Max 5000 | AASHTO T315 |
| Creep Stiffness (S) | MPa | Max 300 | AASHTO T313 |
| m-value | — | Min 0.30 | — |
| Failure Strain | % | Min 1.0 | AASHTO T314 |
International Standards
This product complies with major global standards:
- ASTM D36
- AASHTO M320 / M332
- EN 12593
- ISO 9001
Quality Control & Inspection
All products are tested under strict laboratory conditions in accordance with international standards.
- Full quality control in certified laboratory
- Third-party inspection available (SGS / Geo Chem)
- Pre-shipment verification for each batch
- Consistent production quality for global projects
Advantages
- High resistance to deformation (rutting)
- Excellent crack resistance in cold climates
- Long service life reduces maintenance costs
- Reliable performance under heavy traffic loads
Packaging Options
Polymer Modified Bitumen PG 82-22 is available in multiple packing formats:

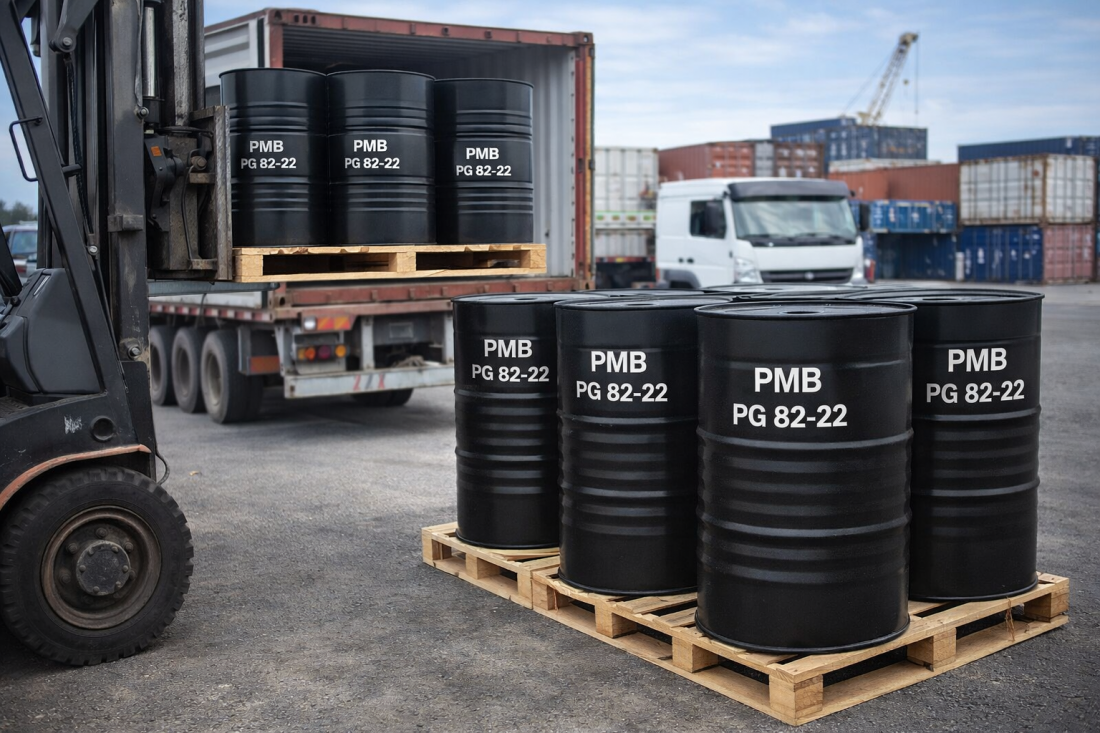

Drum Packing
- 180 KG New Steel Drum
- 110 Drums / 20FT Container
- 19.8 MT Net
- 150 KG New Steel Drum
- 110 Drums / 20FT Container
- 16.5 MT Net
Jumbo Bag
- 1 MT Jumbo Bag with pallet: 20 MT / 20FT
- 1 MT Jumbo Bag without pallet: 20 MT / 40FT
Bulk Supply
- Tanker Truck: 24–25 MT
- Bitumen Vessel: 1,000 – 30,000 MT
- Bitutainer: 25 MT
Supplier
HJ OIL is a reliable supplier of Polymer Modified Bitumen (PMB) in various grades and specifications.
With strong experience in East Asia (Taiwan) and international markets, we support large-scale infrastructure projects with consistent quality and stable supply.
Payment Terms
Standard payment terms:
- 30% T/T in advance
- 70% balance against copy of Bill of Lading
Order Process
- Select grade and packaging
- Confirm specifications
- Receive quotation and Proforma Invoice
- Proceed with payment
- Shipment arranged to destination port
