Polymer Modified Bitumen (PMB) PG 76-22
High Performance Asphalt Binder for Extreme Temperature & Heavy Traffic
Product Overview
Polymer Modified Bitumen (PMB) PG 76-22 is a high-performance asphalt binder designed for use in extreme climatic conditions and heavy traffic environments. This grade provides excellent resistance to rutting, fatigue cracking, thermal cracking, and aging.
The designation PG 76-22 indicates that the binder performs effectively at temperatures up to +76°C and remains flexible down to -22°C, making it suitable for a wide range of infrastructure projects.
This product is widely supplied by HJ OIL across East Asia (Taiwan) and international markets.
Key Features
- Excellent resistance to rutting under high temperatures
- Superior resistance to fatigue and thermal cracking
- High elasticity due to SBS polymer modification
- Strong adhesion to aggregates
- Long-term durability and aging resistance
Applications
Polymer Modified Bitumen PG 76-22 is ideal for:
- Highways and expressways with heavy traffic
- Airport runways and taxiways
- Industrial roads and heavy-duty pavements
- Bridges and elevated structures
- Urban roads in high-temperature regions
Technical Specifications (PG 76-22)
| Characteristics | Unit | Limits | Test Method |
|---|---|---|---|
| Max Pavement Temperature | °C | ≤ 76 | — |
| Min Pavement Temperature | °C | ≥ -22 | — |
| Flash Point | °C | Min 230 | AASHTO T48 |
| Viscosity @135°C | Pa.s | Max 3.0 | AASHTO T316 |
| Dynamic Shear (G*/sinδ) @76°C | kPa | Min 1.0 | AASHTO T315 |
| Elastic Recovery | % | Min 50 | AASHTO T301 |
| Mass Change | % | Max 1.0 | AASHTO T240 |
| Dynamic Shear (After Aging) | kPa | Min 2.2 | AASHTO T315 |
| PAV Temperature | °C | 110 | AASHTO R28 |
| G*sinδ @34°C | kPa | Max 5000 | AASHTO T315 |
| Creep Stiffness (S) | MPa | Max 300 | AASHTO T313 |
| m-value | — | Min 0.30 | — |
| Failure Strain | % | Min 1.0 | AASHTO T314 |
International Standards
This product complies with major international standards:
- ASTM D36
- AASHTO M320 / M332
- EN 12593
- ISO 9001
Quality Control & Inspection
All products are tested in accordance with international standards to ensure consistent quality:
- In-house laboratory testing
- Third-party inspection (SGS / Geo Chem) available
- Pre-shipment verification
- Full compliance with project inspection standards
Advantages
- High resistance to deformation and rutting
- Excellent performance under extreme temperature changes
- Long service life with reduced maintenance costs
- Reliable quality for large infrastructure projects
Packaging Options

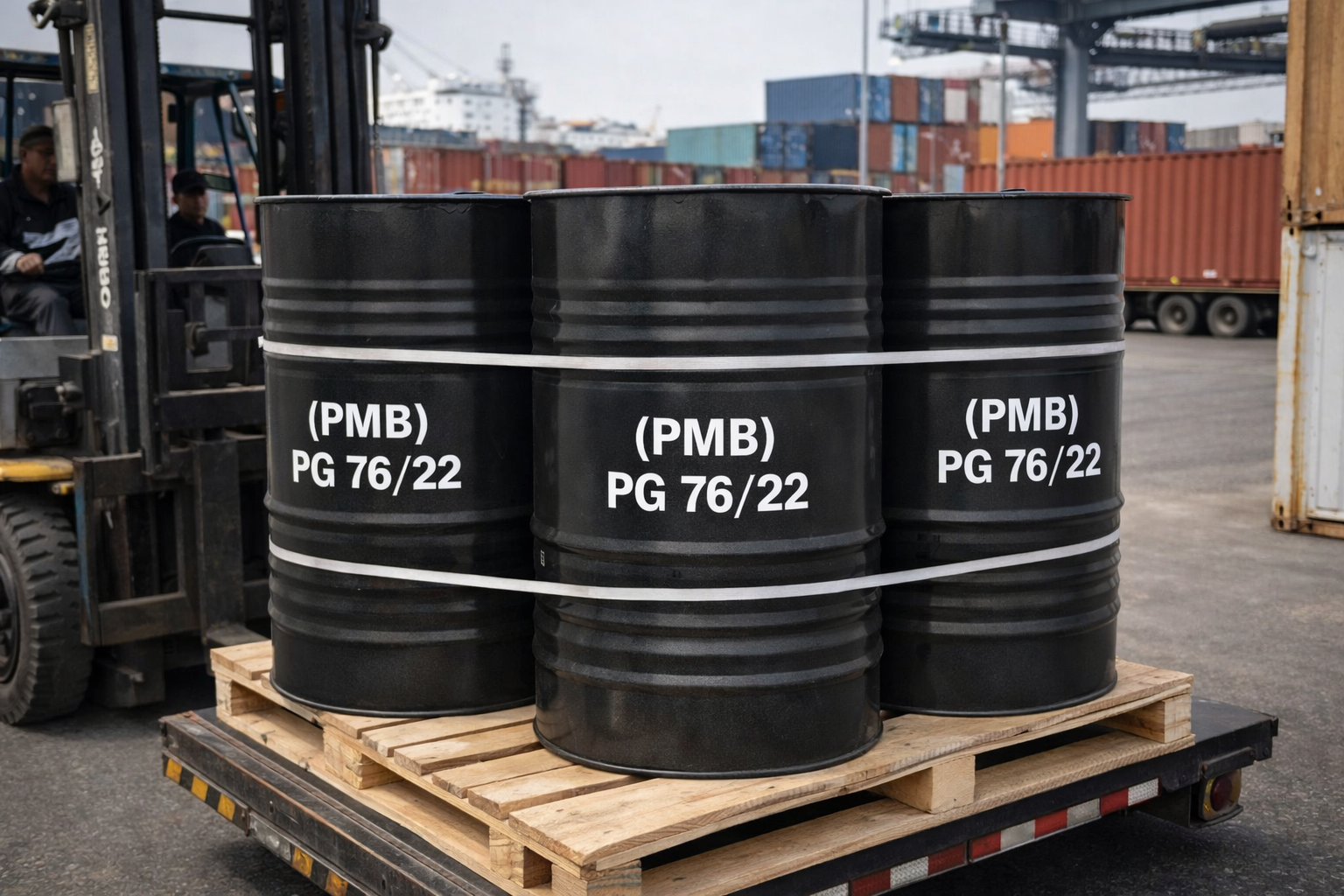

Drum Packing
- 180 KG New Steel Drum
- 110 Drums / 20FT Container
- 19.8 MT Net
- 150 KG New Steel Drum
- 110 Drums / 20FT Container
- 16.5 MT Net
Jumbo Bag
- 1 MT Jumbo Bag with pallet: 20 MT / 20FT
- 1 MT Jumbo Bag without pallet: 20 MT / 40FT
Bulk Supply
- Tanker Truck: 24–25 MT
- Bitumen Vessel: 1,000 – 30,000 MT
- Bitutainer: 25 MT
Supplier
HJ OIL is a trusted supplier of Polymer Modified Bitumen (PMB) in various grades.
With strong experience in East Asia (Taiwan) and global markets, we provide consistent quality and reliable supply for infrastructure and road construction projects.
Payment Terms
- 30% T/T in advance
- 70% balance against copy of Bill of Lading
Order Process
- Select required grade and packaging
- Confirm technical specifications
- Receive quotation and Proforma Invoice
- Proceed with payment
- Shipment arranged to destination
